BlueLine³

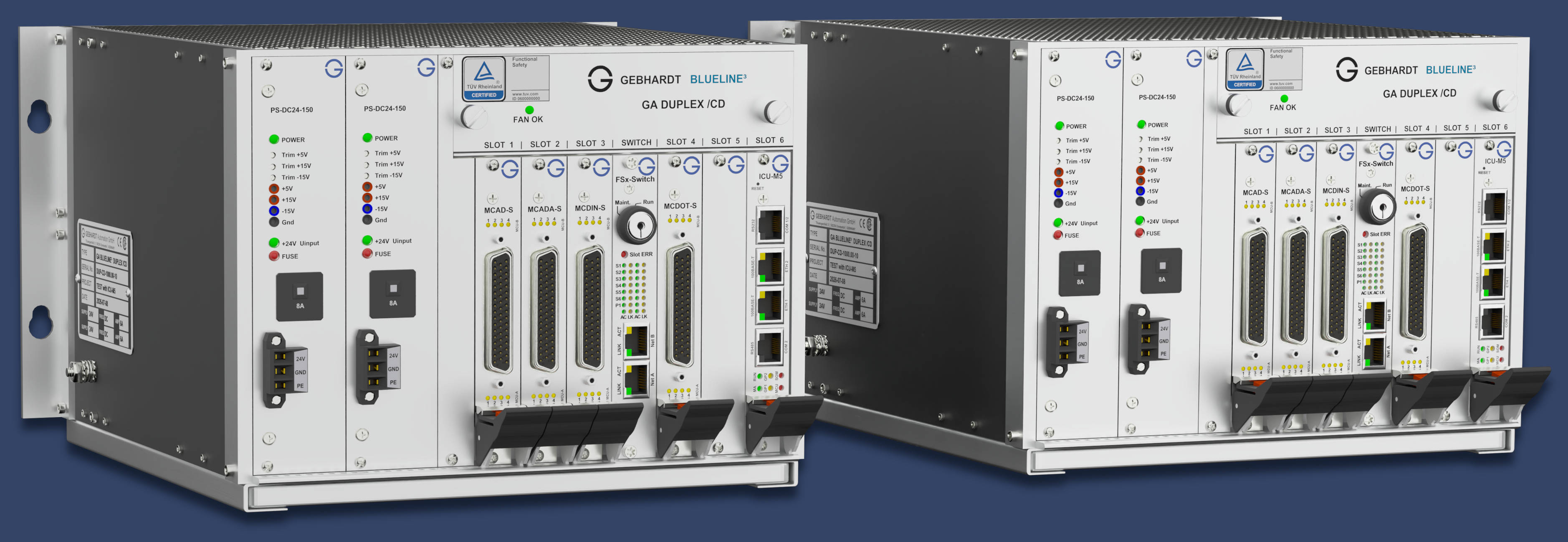

GA BlueLine³ DUPLEX /CD
Dual redundancy and geographically distributed, ensuring uninterrupted operation
Two compact units, each with one data bus, form a DUPLEX system comprising two networked and geographically distributed racks. Fewer potential of common-cause-failures compared with integrated systems.
Technical data
| Architecture | two BASIC /C units as a logical DUPLEX architecture |
|---|---|
| Card slots | Per unit: 6 slots for I/O cards, including the CPU, plus 1 slot for an FSx switch card |
| Backplane bus | FS1 bus with 6 slots each and integrated Ethernet |
| Mounting | Panel |
| Power supply | 24 VDC, single or redundant, max. 150 W, AC optional, front-side slide-in |
| Connections | mainly I/O cards with front-side 50-pin D-Sub sockets |
| Ventilation | front-side circulating fan with fan monitoring; rear dust filter |
| Operating temperature | 0 °C to 60 °C |
| Dimensions | per rack 191 × 300 × 290 mm (H × W × D) |
| Relevant standards | IEC 61508, EN ISO 13849, IEC 62061, EN 61010, IEC 61131, EN 61373 |
