BlueLine³

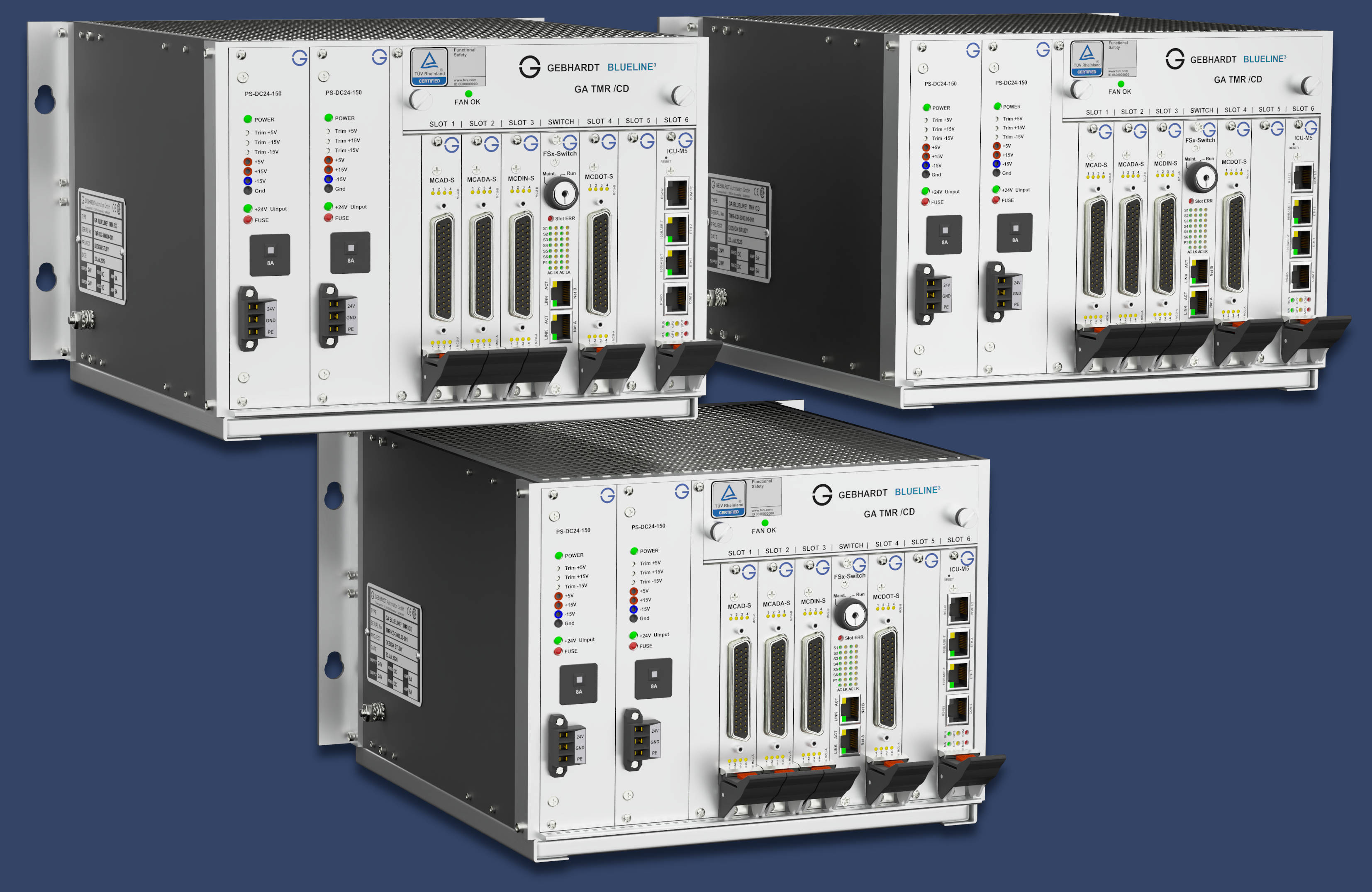

GA BlueLine³ TMR /CD
Distributed and triple-redundant
Three compact units with up to six cards each work as a spatially distributed TMR system with triple modular redundancy and full SIL3 safety. All components can be replaced whilst the system is running. Standard or majority-based votings are possible, with adjustable degradation behaviour.
Technical data
| Architecture | 3 × subracks in a TMR cluster |
|---|---|
| Card slots | up to 6 I/O cards incl. CPU each |
| Backplane bus | FS1-buses with integrated Ethernet |
| Mounting | Panel |
| Power supply | 24 VDC, single or redundant, max. 150 W, AC optional, front-side slide-in |
| Connections | mainly I/O cards with front-side 50-pin D-Sub sockets |
| Ventilation | front-side circulating fan with fan monitoring; rear dust filter |
| Operating temperature | 0 °C to 60 °C |
| Dimensions | per rack 191 × 300 × 290 mm (H × W × D) |
| Relevant standards | IEC 61508, EN ISO 13849, IEC 62061, EN 61010, IEC 61131, EN 61373 |
