GA BlueLine³ DUPLEX /CMD
Dual redundancy, geographically distributed, ensuring uninterrupted operationg

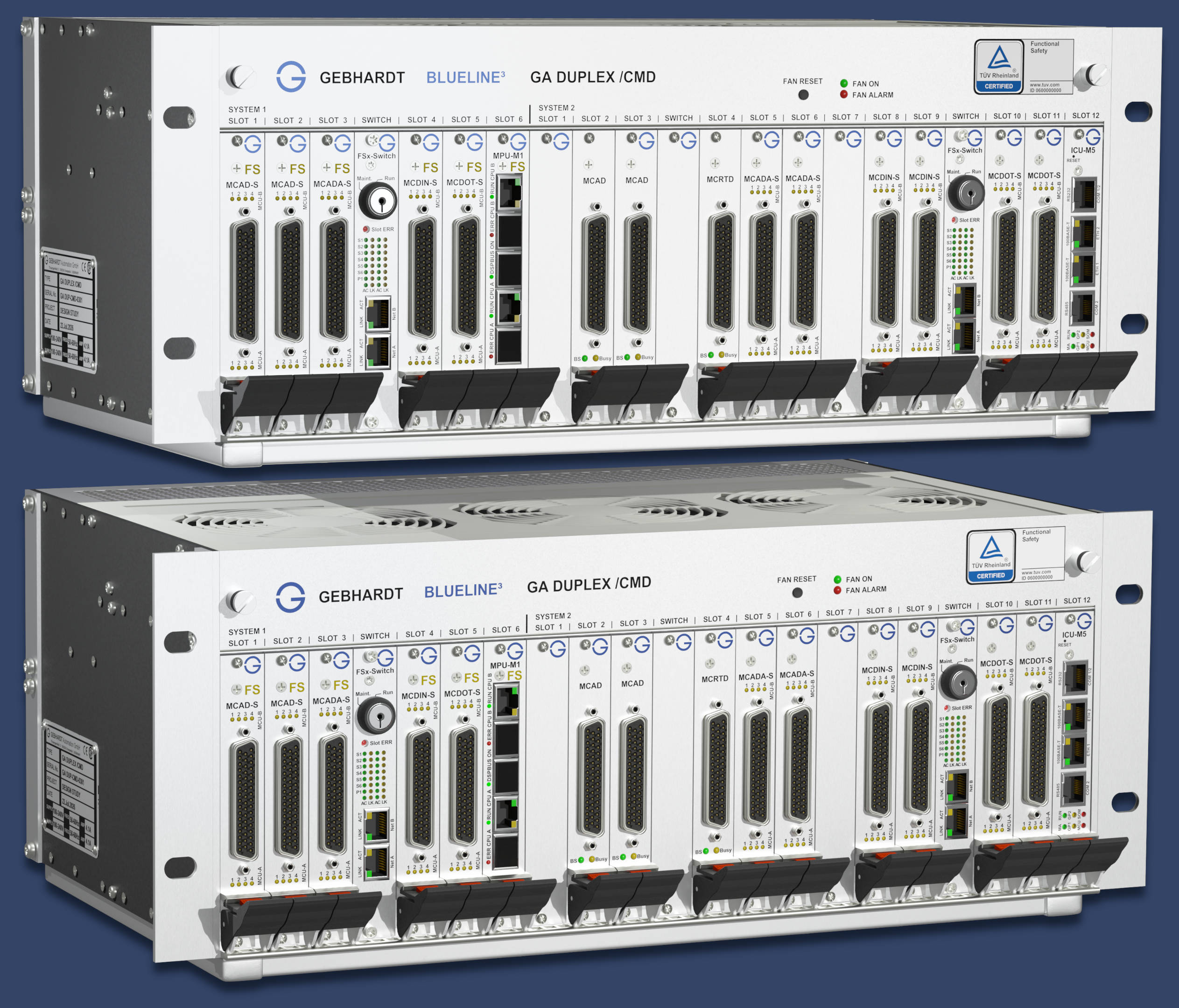

Two units, each with two data buses, form a DUPLEX system comprising two networked and geographically distributed 19-inch racks – modular redundancy with four autonomous controllers integrated into a single system. Fewer potential of common-cause-failures compared with integrated systems.
Architecture
Technical data
| Architecture | two BASIC /CM units as a logical DUPLEX architecture |
|---|---|
| Card slots | Per unit, with 6 and 12 slots for I/O and CPU cards, plus slots for FSx switch cards |
| Backplane bus | Per unit: 2× FS1 data buses with integrated Ethernet, 1 bus with 6 slots and 1 bus with 12 slots |
| Mounting | swing frame from the front (19″) |
| Power supply | 24 VDC or 110/230 VAC, max. 300 W |
| Connections | front-side 50-pin D-Sub sockets |
| Ventilation | front-side circulating fan with fan monitoring; rear dust filter |
| Operating temperature | 0 °C to 60 °C |
| Dimensions | 191 × 483 × 351 mm (H × W × D) |
| Relevant standards | IEC 61508, EN ISO 13849, IEC 62061, EN 61010, IEC 61131, EN 61373 |
